MODEL 777
LANDING GEAR
The landing gear was a true feat of engineering. Not only did I manage to include an incredible amount of static detail, I successfully got the many movable parts to function together harmoniously, enabling a realistic extension and retraction sequence. The gear was tested and found to support a real-life maximum equivalent of over a million pounds—far more than in actuality.
NOSE LANDING GEAR

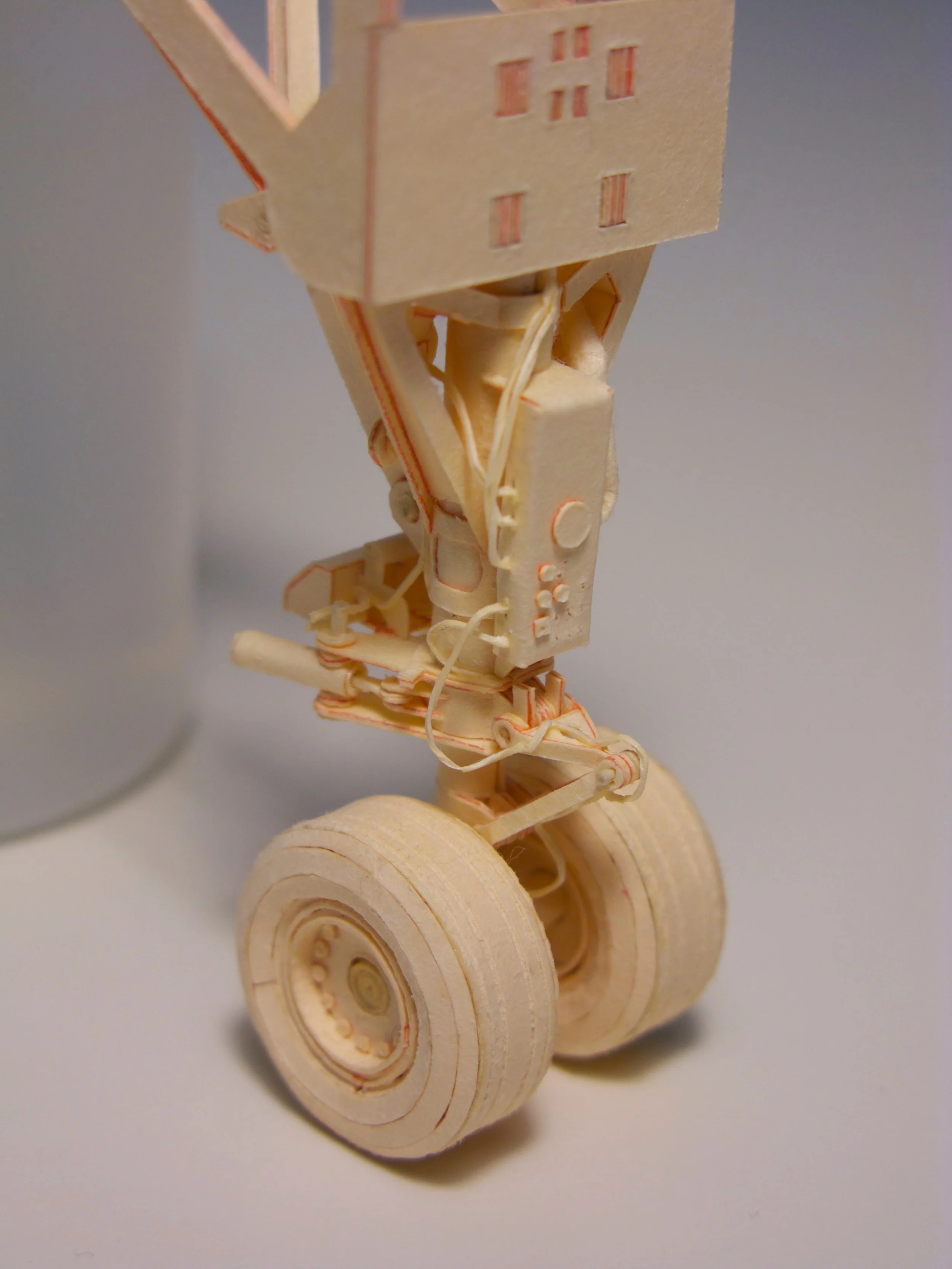

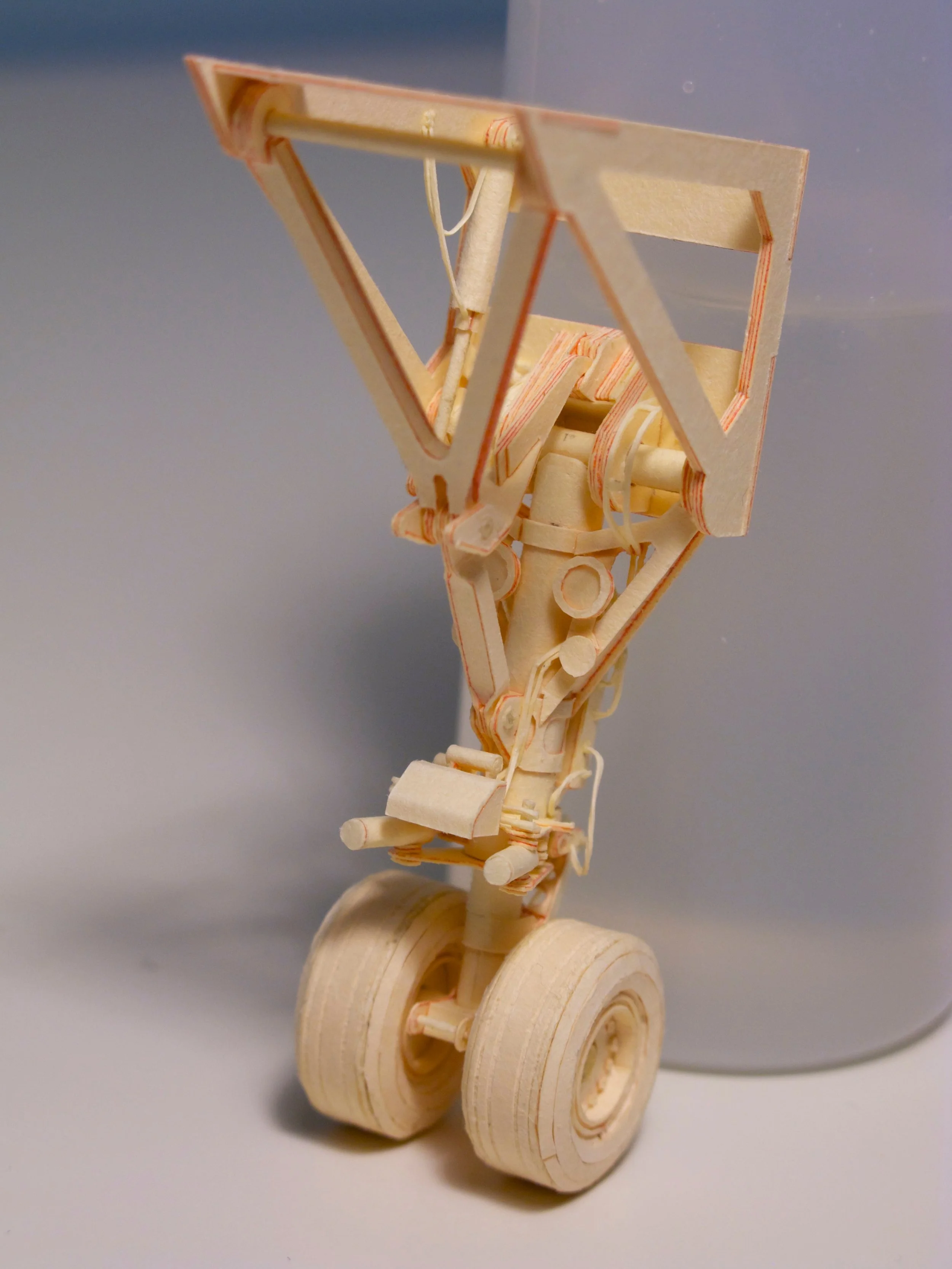

The nose landing gear is located under the cockpit and pivots from side to side to help steer the plane on the ground
![[17:52] OZ0521 ICN-LHR.](https://live.staticflickr.com/8446/7986856311_e7154b93a8_b.jpg)
NOSE LANDING GEAR
DESIGN
NOSE LANDING GEAR
BUILD
MAIN LANDING GEAR

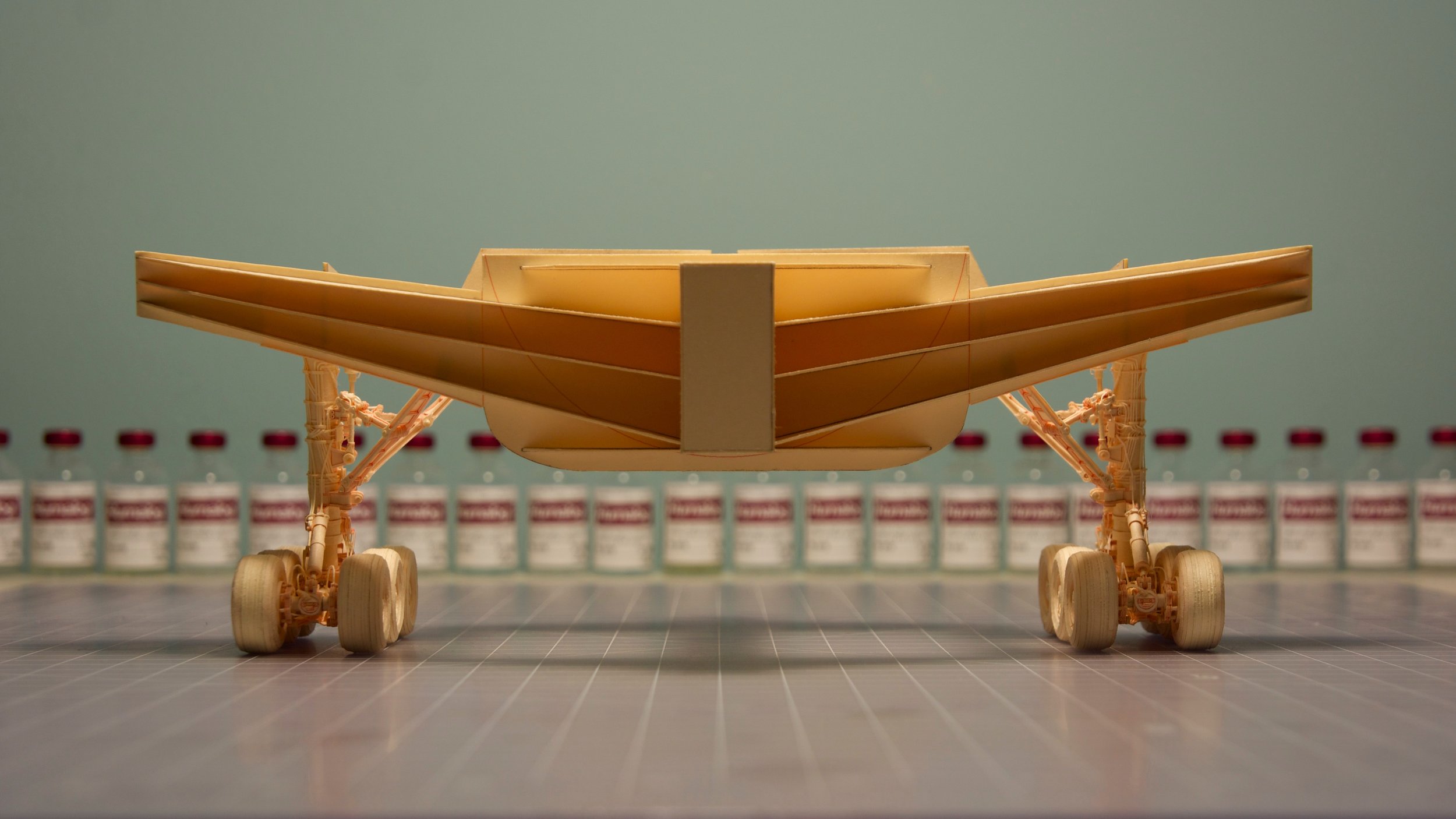

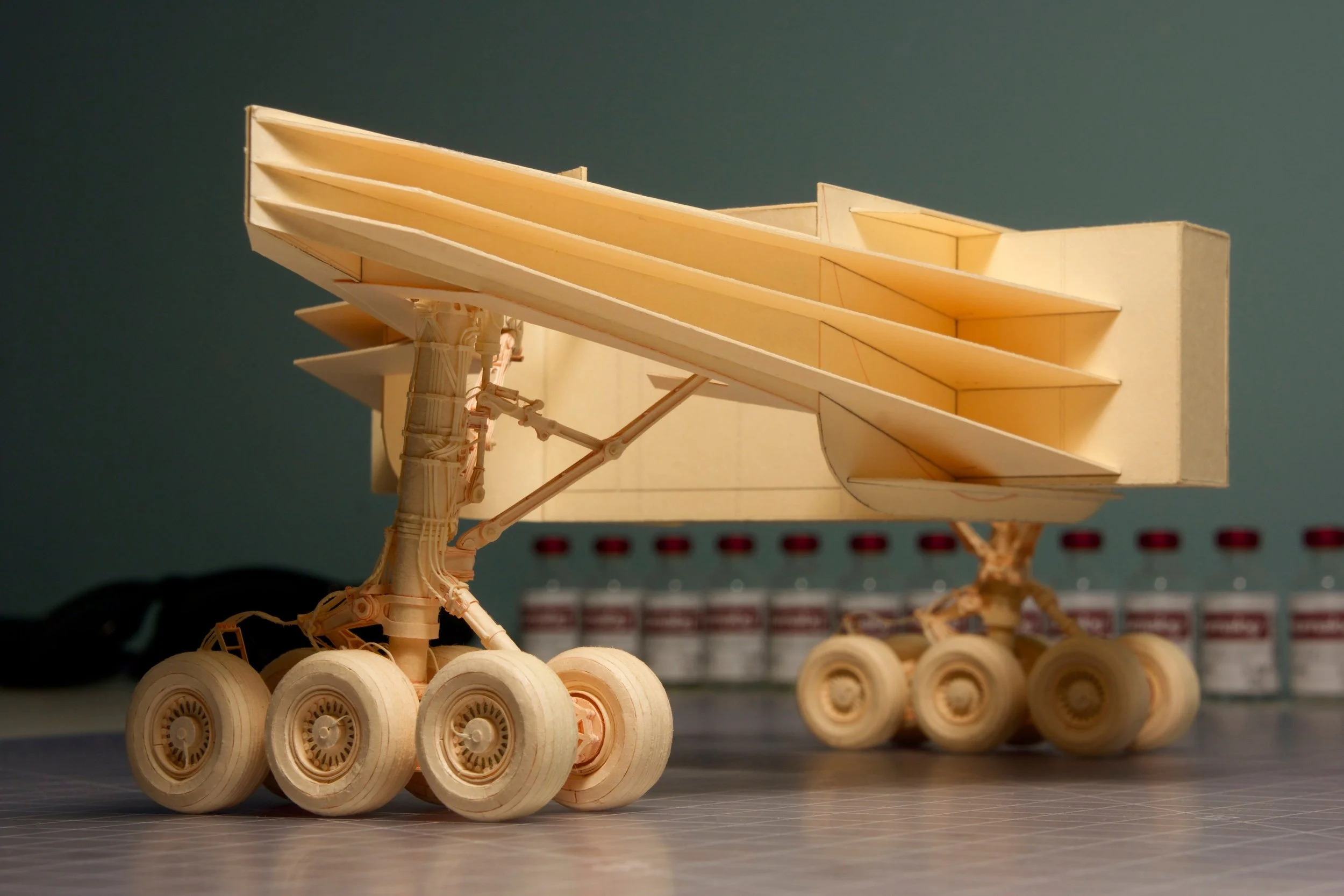

The 777 has two main gear bogies, each with six wheels. Each bogie is attached to the root of the wing and retracts under the floor of the cabin.
MAIN LANDING GEAR
DESIGN

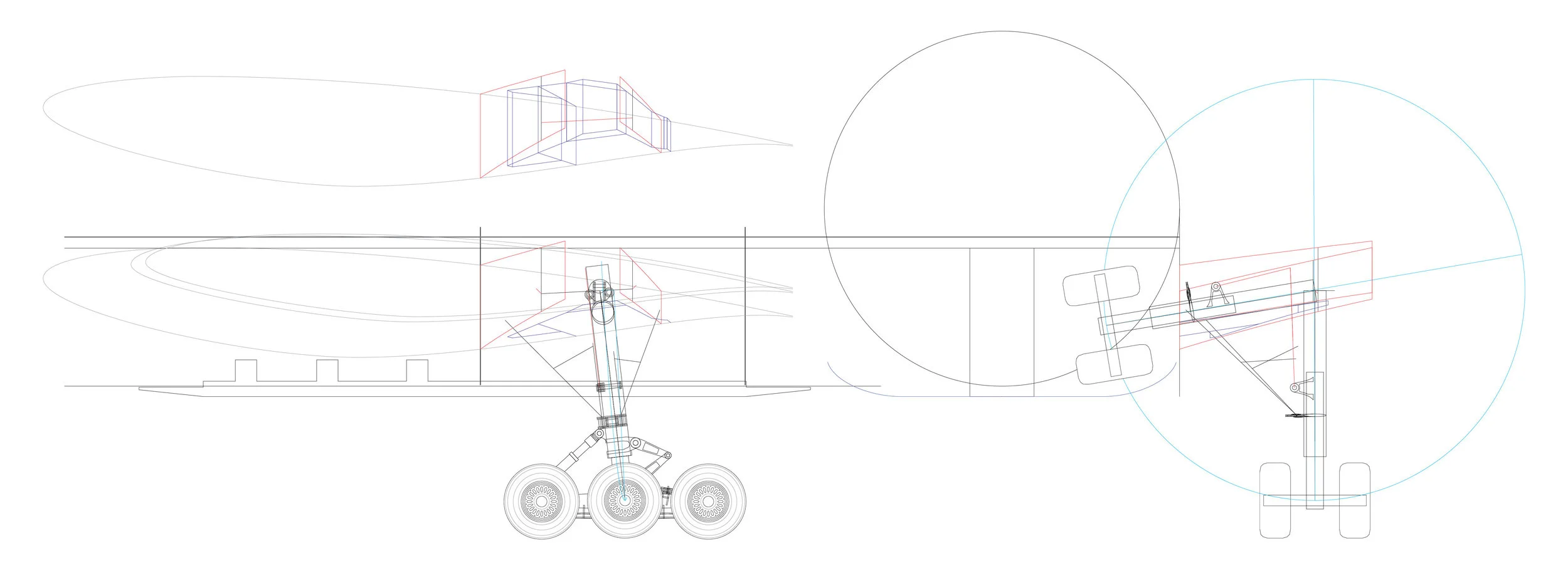

Design drawings for the main landing gear showing the arc of the gear’s rotation as it retracts into the fuselage

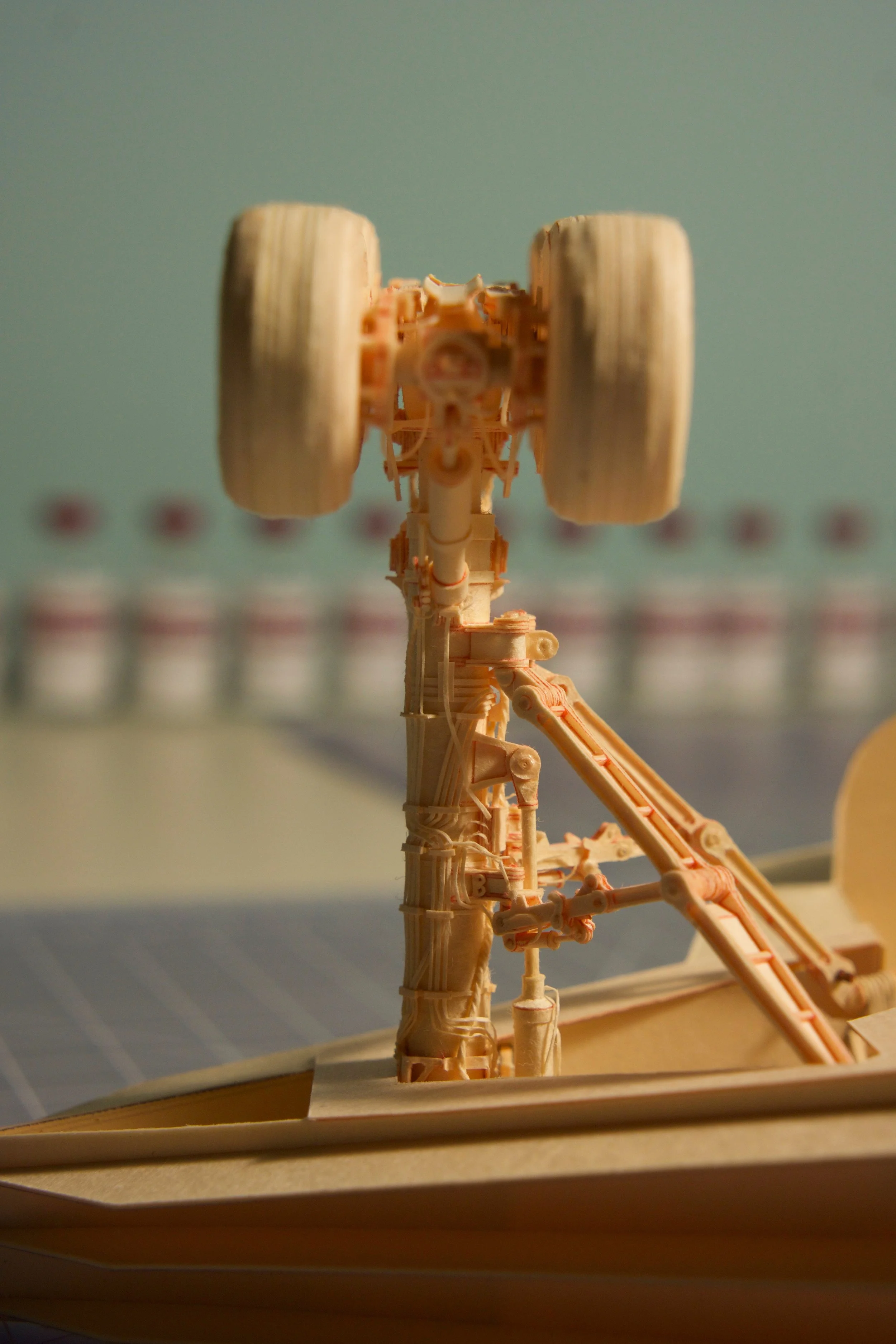

Figuring out the articulation of the main gear bogie

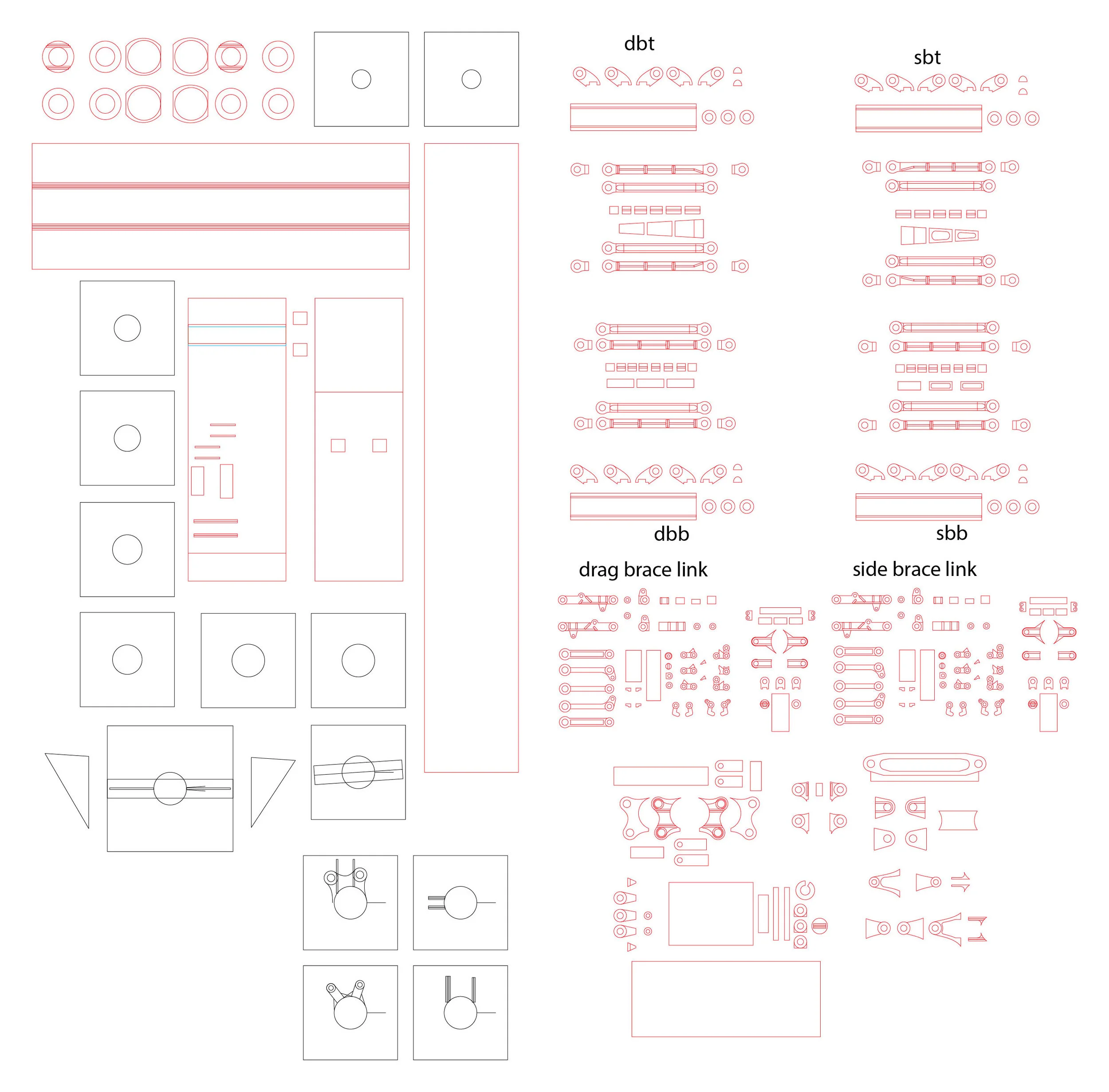

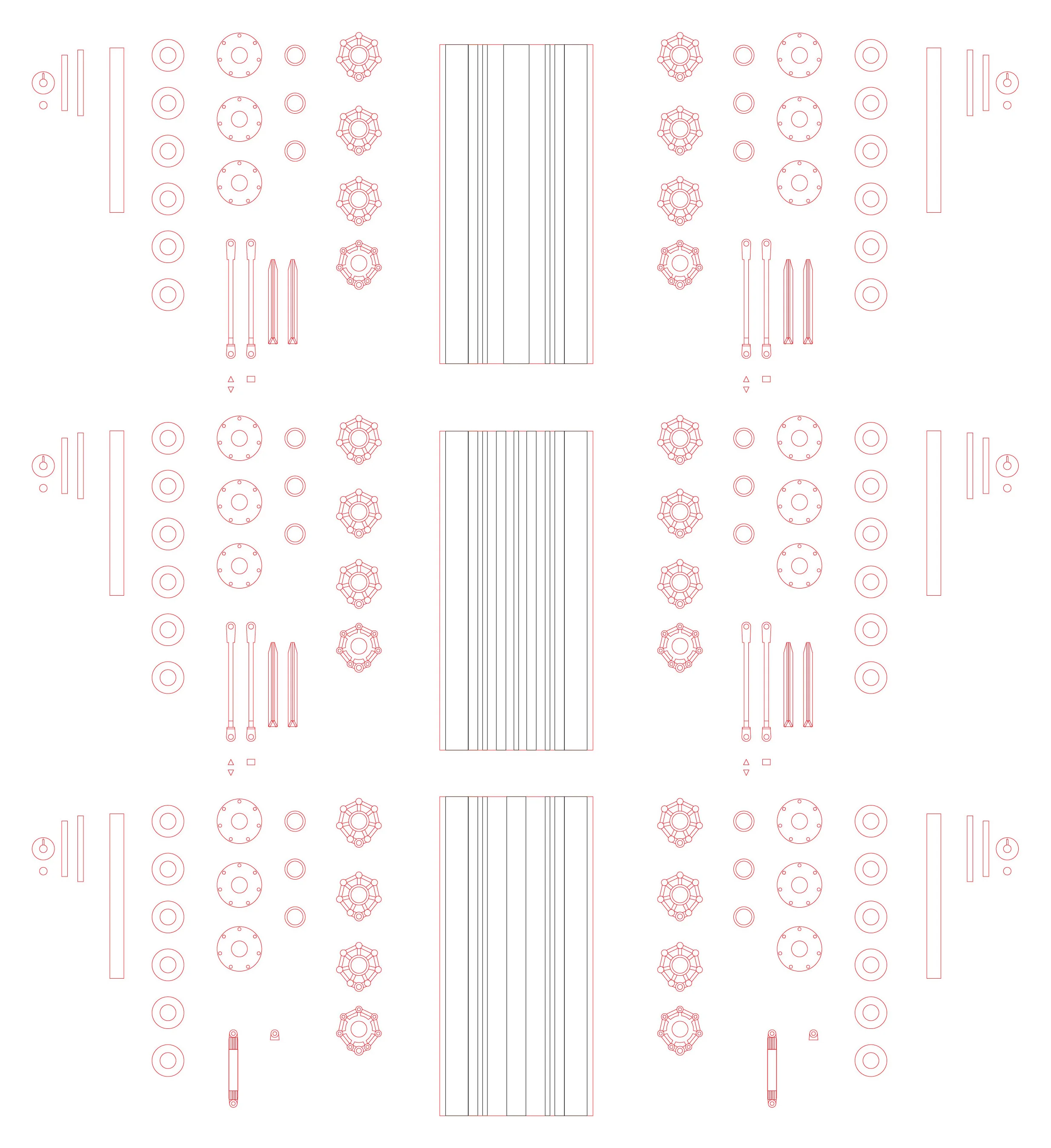

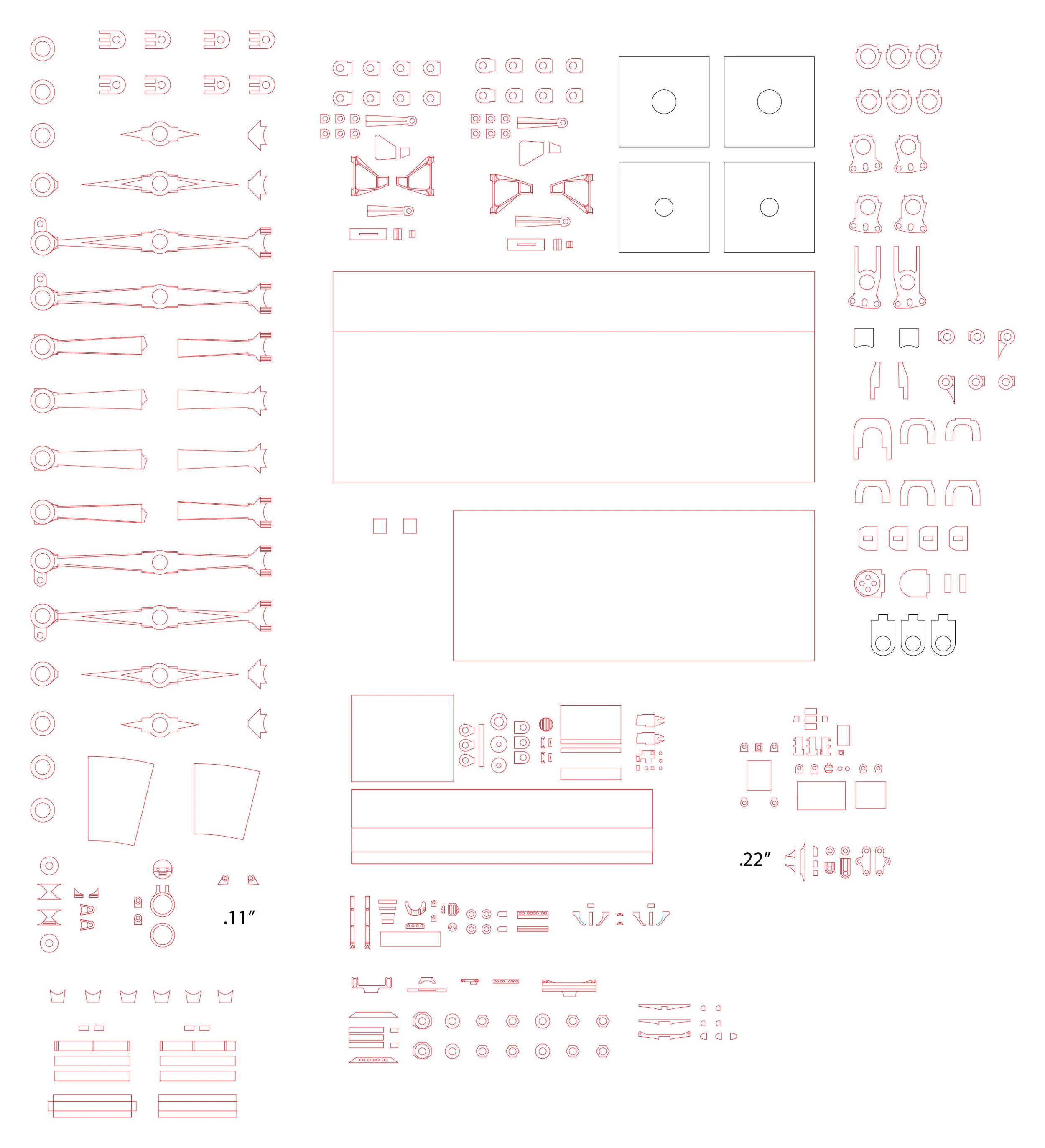

Parts for the main gear, arranged for printing
